Android Studio - 리스트뷰 아이템에 아이콘 그리기

728x90

💡Adapter 생성 - getView() 오버라이딩

◾ 주어진 인덱스(position)에서의 뷰를 지역변수 view에 저장한다.
View view = converView;
◾ view가 null이면, row,xml파일을 인플레이트 한다.
if(view == null) {
	view = inflater.inflate(R.layout.row, null);
}
◾ view에서 이미지뷰를 찾아 인덱스인 position에 따라 이미지 변경한다.
ImageView iv = (ImageView)view.findViewById(R.id.iv);

int nResId = R.drawable.heart;

if(position%2 == 0) {
	nResId = R.drawable.star;
}
◾ view에서 텍스트뷰를 찾는다.
TextView tv = (TextView)view.findViewById(R.id.tv);
◾ 문자열 배열의 텍스트를 텍스트뷰에 지정한다.
tv.setText(mItems[position]);

📂자료

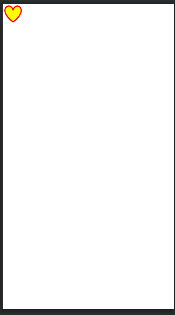

📃아이콘과 텍스트뷰 같이 출력하기

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/heart" />

    <TextView
        android:id="@+id/tv"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp" />

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/list"/>

</LinearLayout>

📝MainActivity.java

package com.example.linearview_test;

import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ArrayAdapter;
import android.widget.ListView;

public class MainActivity extends AppCompatActivity {
    String str_items[] = { "red", "blue", "green", "yellow"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        ArrayAdapter<String> aa = new ArrayAdapter<String>(this, R.layout.row, R.id.tv, str_items);
        ListView lv = findViewById(R.id.list);
        lv.setAdapter(aa);
    }
}

📃하트 아이콘을 별 아이콘으로 바꾸는 응용 예제

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/star" />

    <TextView
        android:id="@+id/tv"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp" />

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/list"/>

</LinearLayout>

📝MainActivity.java

package com.example.listview_icon;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.widget.ArrayAdapter;
import android.widget.ListView;

public class MainActivity extends AppCompatActivity {
    String str_items[] = {"red", "blue", "green", "yellow"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        ArrayAdapter<String> aa = new ArrayAdapter<String>(this, R.layout.row, R.id.tv, str_items);
        ListView lv = findViewById(R.id.list);
        lv.setAdapter(aa);
    }
}

📃짝수는 별, 홀수는 하트 아이콘으로 표시하기

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:padding="20px"
        android:id="@+id/iv"
        android:src="@drawable/heart"/>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:textSize="30dp"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:id="@+id/tv"/>
</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">


    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/list"/>


</LinearLayout>

📝MainActivity.java

package com.example.adapter_test;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {
    String str_items[] = { "red", "blue", "green", "yellow"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        MyAdapter aa = new MyAdapter(this, R.layout.row, R.id.tv, str_items);
        ListView lv = findViewById(R.id.list);
        lv.setAdapter(aa);
    }
}

class MyAdapter extends ArrayAdapter<String>{
    LayoutInflater inflater;
    String[] mItems;

    public MyAdapter(Context context, int resId, int tvId, String[] objects) {
        super(context, resId, tvId, objects);

        mItems = objects;
        inflater = LayoutInflater.from(context);
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
        View view = convertView; // 주어진 인덱스(position)에서의 뷰를 지역변수 view에 저장

        if(view == null) {
            view = inflater.inflate(R.layout.row, null); // view가 null이면 row.xml파일을 인플레이트한다.
        }
        ImageView iv = view.findViewById(R.id.iv); // view에서 이미지뷰를 찾아
        int nResId = R.drawable.heart; // 인덱스인 position에 따라

        if(position % 2 == 0) { // 이미지 변경
            nResId = R.drawable.star;
        }
        iv.setImageResource(nResId);
        TextView tv = view.findViewById(R.id.tv); // view에서 텍스트뷰를 찾음
        tv.setText(mItems[position]); // 문자열 배열의 텍스트를 텍스트뷰에 저장

        return view;
    }
}

📃새로운 Adapter 생성, item 내용 바꾸기

◾ ArrayAdapter를 상속받아 MyAdapter를 추가한다.
◾ MyAdapter의 멤버변수
LayoutInflator inflator;
String[] mItems;
◾ 생성자에서 멤버변수 초기화
◾ getView 오버라이딩 - row.xml 사용

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/heart" />

    <TextView
        android:id="@+id/tv"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp" />

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ListView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/list"/>

</LinearLayout>

📝MainActivity.java

package com.example.listview_icon;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;

import org.w3c.dom.Text;

public class MainActivity extends AppCompatActivity {
    String str_items[] = {"red", "blue", "green", "yellow"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        MyAdapter aa = new MyAdapter(this, R.layout.row, R.id.tv, str_items);
        ListView lv = findViewById(R.id.list);
        lv.setAdapter(aa);
    }
}

class MyAdapter extends ArrayAdapter<String> {

    LayoutInflater inflater;
    String[] mItems;

    public MyAdapter(Context context, int resource, int textViewResourceId, String[] objects) {
        super(context, resource, textViewResourceId, objects);

        mItems = objects;
        inflater = LayoutInflater.from(context);
    }


    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
        View view = convertView; // 주어진 인덱스(position)에서의 뷰를 지역변수 view에 저장
        String str[] = {"빨강", "파랑", "초록", "노랑"};

        if(view == null) {
            view = inflater.inflate(R.layout.row, null);
        }

        TextView tv = (TextView)view.findViewById(R.id.tv);
        tv.setText(str[position]);
        return view;
    }
}

📃아이템을 누르면 textView에 적혀있는 text대로 배경색 지정하기

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/heart" />

    <TextView
        android:id="@+id/tv"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp" />

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ListView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/list"/>

</LinearLayout>

📝MainActivity.java

package com.example.listview_icon2;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.graphics.Color;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {
    String str_items[] = {"red", "blue", "green", "yellow"};
    int color[] = {Color.RED, Color.BLUE, Color.GREEN, Color.YELLOW};
    ListView lv;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        MyAdapter ma = new MyAdapter(this, R.layout.row, R.id.tv, str_items);
        lv = findViewById(R.id.list);
        lv.setAdapter(ma);
        lv.setOnItemClickListener(lis);
    }

    AdapterView.OnItemClickListener lis = new AdapterView.OnItemClickListener() {
        @Override
        public void onItemClick(AdapterView<?> adapterView, View view, int position, long l) {
            view.setBackgroundColor(color[position]);
        }
    };
}

class MyAdapter extends ArrayAdapter<String> {
    LayoutInflater inflater;
    String[] mItems;

    public MyAdapter(Context context, int res, int tvResId, String[] objects) {
        super(context, res, tvResId, objects);

        inflater = LayoutInflater.from(context);
        mItems = objects;
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
        View view = convertView;

        if (view == null) {
            view = inflater.inflate(R.layout.row, null);
        }

        TextView tv = (TextView) view.findViewById(R.id.tv);
        tv.setText(mItems[position]);
        return view;
    }
}

📃버튼 누르면 동적으로 리스트 생성되도록 하기

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/iv"
        android:src="@drawable/heart"/>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp"
        android:id="@+id/tv"/>
</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="20dp">
    <Button
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:textSize="40dp"
        android:text="버튼"
        android:backgroundTint="#9999ff"
        android:id="@+id/btn"/>

    <ListView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/list"/>

</LinearLayout>

📝MainActivity.java

package com.example.listview_icon3;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
    ArrayList<String> al;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        al = new ArrayList<String>();
        MyAdapter ma = new MyAdapter(this, R.layout.row, R.id.tv, al);
        ListView lv = findViewById(R.id.list);
        lv.setAdapter(ma);

        findViewById(R.id.btn).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                al.add("hello");
                ma.notifyDataSetChanged();
            }
        });
    }
}

class MyAdapter extends ArrayAdapter<String> {
    LayoutInflater inflater;
    ArrayList<String> mItems;

    public MyAdapter(Context context, int resId, int tvId, ArrayList objects) {
        super(context, resId, tvId, objects);

        mItems = objects;
        inflater = LayoutInflater.from(context);
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView,
                        @NonNull ViewGroup parent) {
        View view = convertView;      //① 주어진 인덱스(position)에서의 뷰를 지역변수 view에 저장

        if(view == null){           // ② view가 null 이면
            view = inflater.inflate(R.layout.row, null);   // ③ row.xml 파일을 인플레이트한다
        }
        ImageView iv = view.findViewById(R.id.iv); // ④ view에서 이미지뷰를 찾아
        int nResId = R.drawable.heart;        // ⑤ 인덱스인 position에 따라
        if(position%2==0){              //    이미지 변경
            nResId = R.drawable.star;
        }
        iv.setImageResource(nResId);
        TextView tv = (TextView)view.findViewById(R.id.tv);    // ⑥ view에서 텍스트뷰를 찾음
        tv.setText(mItems.get(position));        // ⑦ 문자열 배열의 텍스트를 텍스트뷰에 지정
        return view;

    }

}

📃argb 인자의 값을 난수를 발생시켜 버튼을 누를 때마다 배경색을 바꾸시오.

https://developer.android.com/reference/android/graphics/Color?hl=en

Color | Android Developers

android.net.wifi.hotspot2.omadm

developer.android.com

📝MainActivity.java

package com.example.listview_icon3;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.graphics.Color;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        ListView lv = findViewById(R.id.list);

        findViewById(R.id.btn).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                int r = (int)(Math.random()*256);
                int g = (int)(Math.random()*256);
                int b = (int)(Math.random()*256);
                int result = Color.argb(125, r, g, b);
                lv.setBackgroundColor(result);
            }
        });
    }
}

📃OK버튼을 눌러 아이템에 이름을 추가할 때마다 아이템 배경 색을 난수로 지정하시오.

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/heart"
        android:id="@+id/iv"/>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="30dp"
        android:id="@+id/tv"/>

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="20dp">

    android:layout_width="wrap_content"
    android:layout_height="wrap_content">

    <TextView
        android:id="@+id/tv_name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="이름"
        android:textSize="30dp" />

    <EditText
        android:id="@+id/et_input"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignBaseline="@id/tv_name"
        android:layout_toRightOf="@id/tv_name" />

    <Button
        android:id="@+id/btn_ok"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/et_input"
        android:layout_alignParentRight="true"
        android:text="OK"
        android:textSize="20dp" />

    <Button
        android:id="@+id/btn_cancel"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/et_input"
        android:layout_marginRight="10dp"
        android:layout_toLeftOf="@id/btn_ok"
        android:text="CANCEL"
        android:textSize="20dp" />

    <ListView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:id="@+id/list"
        android:layout_below="@id/btn_cancel"/>
</RelativeLayout>

📝MainActiviy.java

package com.example.item_change_color;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.EditText;
import android.widget.ListView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    ArrayList<String> al = new ArrayList<>();
    MyAdapter ma;
    EditText et;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        et = findViewById(R.id.et_input);

        ma = new MyAdapter(this, R.layout.row, R.id.tv, al);
        ((ListView) findViewById(R.id.list)).setAdapter(ma);

        findViewById(R.id.btn_ok).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                al.add("" + et.getText().toString());
                et.setText("");
                ma.notifyDataSetChanged();
            }
        });
    }
}

📝MyAdapter.java

package com.example.item_change_color;

import android.content.Context;
import android.graphics.Color;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;

import java.util.ArrayList;

public class MyAdapter extends ArrayAdapter {
    LayoutInflater inflater;
    ArrayList<String> mItems;
    int nTvId;

    public MyAdapter(Context context, int resId, int tvId, ArrayList objects) {
        super(context, resId, tvId, objects);

        mItems = objects;
        inflater = LayoutInflater.from(context);
        nTvId = tvId;
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView,
                        @NonNull ViewGroup parent) {
        View view = convertView;

        if (view == null) {
            view = inflater.inflate(R.layout.row, null);
            view.setBackgroundColor(getRandomColorId()); // null 상태일 때 배경색을 바꾼다.
        }

        TextView tv = (TextView) view.findViewById(nTvId);
        tv.setText(mItems.get(position));


        return view;

    }

    int getRandomColorId() {
        int r = (int) (Math.random() * 256);
        int g = (int) (Math.random() * 256);
        int b = (int) (Math.random() * 256);

        return Color.argb(125, r, g, b);

    }
}

📃커스터마이징 어댑터, 리스트뷰 활용

◾ 교과목이 자바면 이미지뷰에 자바 사진과 이름을 출력하고, C언어면 C언어 사진과 이름을 출력한다.

📝row.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:layout_width="100dp"
        android:layout_height="100dp"
        android:src="@drawable/java"
        android:id="@+id/iv"/>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/tv"
        android:textSize="30dp"/>

</LinearLayout>

📝layout.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="20dp">

    <TextView
        android:id="@+id/tv_subject"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="교과목"
        android:textSize="30sp" />

    <EditText
        android:id="@+id/et_subject"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignBaseline="@id/tv_subject"
        android:layout_toRightOf="@id/tv_subject"
        android:textSize="20sp" />

    <TextView
        android:id="@+id/tv_name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/tv_subject"
        android:text="이름"
        android:textSize="30sp" />

    <EditText
        android:id="@+id/et_name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@id/et_subject"
        android:layout_alignBaseline="@id/tv_name"
        android:layout_toRightOf="@id/tv_subject"
        android:textSize="20sp" />

    <Button
        android:id="@+id/btn_cancel"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/et_name"
        android:layout_alignParentRight="true"
        android:backgroundTint="#4599ff"
        android:text="CANCEL"
        android:textSize="20sp" />

    <Button
        android:id="@+id/btn_ok"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/et_name"
        android:layout_marginRight="10dp"
        android:layout_toLeftOf="@id/btn_cancel"
        android:backgroundTint="#9999ff"
        android:text="OK"
        android:textSize="20sp" />

    <ListView
        android:id="@+id/lv"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_below="@id/btn_cancel" />

</RelativeLayout>

📝MainActivity.java

package com.example.customizing_adapter;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import java.lang.reflect.Array;
import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.layout);

        ArrayList<String> al = new ArrayList<String>();
        ArrayList<String> subAl = new ArrayList<String>();
        ListView lv = findViewById(R.id.lv);
        Button btn_ok = findViewById(R.id.btn_ok);
        Button btn_cancel = findViewById(R.id.btn_cancel);

        MyAdapter ma = new MyAdapter(this, R.layout.row, R.id.tv, al, subAl);
        lv.setAdapter(ma);

        btn_ok.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                EditText et_name = findViewById(R.id.et_name);
                EditText et_subject = findViewById(R.id.et_subject);

                al.add(et_name.getText().toString());
                subAl.add(et_subject.getText().toString());
                et_subject.setText("");
                et_name.setText("");
                ma.notifyDataSetChanged();
            }
        });
    }
}

📝MyAdapter.java

package com.example.customizing_adapter;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;

import java.util.ArrayList;

public class MyAdapter extends ArrayAdapter {
    LayoutInflater inflater;
    ArrayList<String> mItems;
    ArrayList<String> subItems;
    int tvId;

    public MyAdapter(@NonNull Context context, int res, int tvResId, ArrayList<String> objects, ArrayList<String> subjects) {
        super(context, res, tvResId, objects);

        inflater = LayoutInflater.from(context);
        mItems = objects;
        subItems = subjects;
        tvId = tvResId;
    }

    @NonNull
    @Override
    public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
        View view = convertView;

        if(view == null) {
            view = inflater.inflate(R.layout.row, null);
        }

        ImageView iv = view.findViewById(R.id.iv);

        int resIv = R.drawable.java;

        if(subItems.get(position).equals("c")) {
            resIv = R.drawable.c;

        }
        iv.setImageResource(resIv);

        TextView tv = (TextView)view.findViewById(tvId);
        tv.setText(mItems.get(position));

        return view;
    }
}

🔸 클래스로 만들기

📝Student.java

package com.example.registration2;

public class Student {

private String name;

private String subject;

public Student(String name, String subject){

this.name = name;

this.subject = subject;

}

String getName(){

return name;

}

String getSubject(){

return subject;

}

📝MainActivity.java

package com.example.registration2;

import android.os.Bundle;

import android.view.View;

import android.widget.EditText;

import android.widget.ListView;

import androidx.appcompat.app.AppCompatActivity;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

ArrayList<Student> al = new ArrayList<>();

MyAdapter ma;

EditText et;

EditText et_sub;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.layout);

et = findViewById(R.id.et_input);

et_sub = findViewById(R.id.et_subject);

ma = new MyAdapter(this, R.layout.row, R.id.listitem_tv, al);

((ListView)findViewById(R.id.list_names)).setAdapter(ma);

findViewById(R.id.btn_ok).setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View v) {

Student st = new Student(et.getText().toString(), et_sub.getText().toString());

al.add(st);

ma.notifyDataSetChanged();

et.setText("");

}

});

}

📝MyAdapter.java

package com.example.registration2;

import android.content.Context;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.widget.ImageView;

import android.widget.TextView;

import androidx.annotation.NonNull;

import androidx.annotation.Nullable;

import java.util.ArrayList;

public class MyAdapter extends ArrayAdapter {

LayoutInflater inflater;

ArrayList<Student> mItems;

int nTvId;

public MyAdapter(Context context, int resId, int tvId, ArrayList objects){

super(context, resId, tvId, objects);

mItems = objects;

inflater = LayoutInflater.from(context);

nTvId = tvId;

}

@NonNull

@Override

public View getView(int position, @Nullable View convertView,

@NonNull ViewGroup parent) {

View view = convertView;

if(view == null){

view = inflater.inflate(R.layout.row, null);

}

int resId = R.drawable.heart_imo;

if((mItems.get(position).getSubject()).equals("java")){

resId = R.drawable.star_imo;

}

((ImageView)view.findViewById(R.id.listeitem_iv)).setBackgroundResource(resId);

TextView tv = (TextView)view.findViewById(nTvId);

tv.setText(mItems.get(position).getName());

return view;

}

728x90

'App > Android Studio' 카테고리의 다른 글

Android Studio - 명시적 인텐트 (0)	2022.08.08
Android Studio - 액티비티 수명주기와 재실행 (0)	2022.08.08
Android Studio - ImageView Shuffle 실습 (0)	2022.08.04
Android Studio - 버튼 클릭 시 ImageView 동적 변경 (0)	2022.08.04
Android Studio - ArrayList를 이용한 ListView 동적 생성 (0)	2022.08.04

Android Studio - 리스트뷰 아이템에 아이콘 그리기

💡Adapter 생성 - getView() 오버라이딩

📂자료

📃아이콘과 텍스트뷰 같이 출력하기

📝row.xml

📝layout.xml

📝MainActivity.java

📃하트 아이콘을 별 아이콘으로 바꾸는 응용 예제

📝row.xml

📝layout.xml

📝MainActivity.java

📃짝수는 별, 홀수는 하트 아이콘으로 표시하기

📝row.xml

📝layout.xml

📝MainActivity.java

📃새로운 Adapter 생성, item 내용 바꾸기

📝row.xml

📝layout.xml

📝MainActivity.java

📃아이템을 누르면 textView에 적혀있는 text대로 배경색 지정하기

📝row.xml

📝layout.xml

📝MainActivity.java

📃버튼 누르면 동적으로 리스트 생성되도록 하기

📝row.xml

📝layout.xml

📝MainActivity.java

📃argb 인자의 값을 난수를 발생시켜 버튼을 누를 때마다 배경색을 바꾸시오.

📝MainActivity.java

📃OK버튼을 눌러 아이템에 이름을 추가할 때마다 아이템 배경 색을 난수로 지정하시오.

📝row.xml

📝layout.xml

📝MainActiviy.java

📝MyAdapter.java

📃커스터마이징 어댑터, 리스트뷰 활용

📝row.xml

📝layout.xml

📝MainActivity.java

📝MyAdapter.java

🔸 클래스로 만들기

📝Student.java

📝MainActivity.java

📝MyAdapter.java

'App > Android Studio' 카테고리의 다른 글

관련글

댓글

티스토리툴바
